Wireline Tools
1

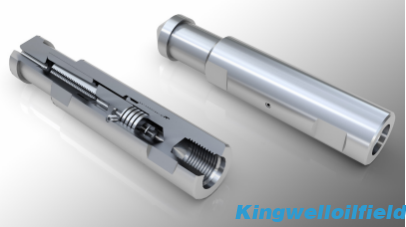

Maxi Grip

Max Grip,is the uppermost component in a wireline are used to pre-load the slips,and ensure that toolstring and forms the essential interface between
Download Pdf

Product Parameters

Product Parameters

Max Grip,is the uppermost component in a wireline  toolstring and forms the essential interface between  the toolstring and the wire.The specially designed Slip  and Pre-loaded Initiator Clamp assembly secures the  braided wireline to the Rope Socket.Belleville Springs  are used to pre-load the slips,and ensure that  the pre-load is maintained even if wireline  tension is reduced.

ToolsFishneck O.D.Wire SizeConnection Type
O.D.
1.250"1.187"3/16"- 7/32"-1/4"-5/16"15/16"-10UN
1.500"1.375"15/16"-10UN
1.875"1.750"11/16"-10UN
2.500"2.313"19/16"-10UN
