Wireline Tools
1

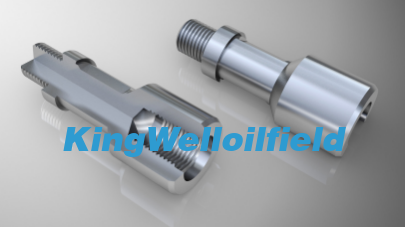

Type UN Crossover Adapter

Type UN Crossover Adapter is designed to connect two incompatible connections (UN thread to UN thread of different size) in the toolstring.ToolsUppe
Download Pdf

Product Parameters

Product Parameters

Type UN Crossover Adapter is designed to connect  two incompatible connections (UN thread to UN  thread of different size) in the toolstring.

ToolsUpper PinLower BoxFishneck
O.D.ConnectionConnectionO.D.
1.250"15/16"-10UN3/4"-16UN1.187"
1.250"3/4"-16UN15/16"-10UN1.187"
1.500"15/16"-10UN5/8"-11UN1.375"
1.500"5/8"-11UN15/16"-10UN1.000"
1.500"15/16"-10UN3/4"-16UN1.375"
1.500"3/4"-16UN15/16"-10UN1.375"
1.875"11/16"-10UN3/4"-16UN1.750"
1.875"3/4"-16UN11/16"-10UN1.375"
1.875"15/16"-10UN11/16"-10UN1.375"
1.875"11/16"-10UN15/16"-10UN1.750"
2.500"15/16"-10UN19/16"-10UN1.375"
2.500"19/16"-10UN15/16"-10UN2.313"
2.500"11/16"-10UN19/16"-10UN1.750"
2.500"19/16"-10UN11/16"-10UN2.313"
