Multi-finger Imaging Tool

Description

The Multi-Finger Imaging Tool has been designed to provide the most accurate Pipe ID caliper measurements in the industry. The high quality output data allows for 3-D imaging and calculation of corrosion, penetration, or scale deposition.

The MFI tool can be combined with any other tool in the GDTbus suite using a Wireline Telemetry Cartridge (SRO) or Downhole Memory Cartridge (Memory) .

All MFI tools have a built-in orientation sensor that allow for relative bearing and deviation data correction. Temperature correction is hardware based so no software drift files are needed. The mechanical design allows for easy finger replacement in the field.

Applications

▶ Both realtime and memory

▶ Tubular damage analysis

▶ Perforation mapping

▶ Quantification of scale build up and corrosion

▶ Accurate location mapping of holes and anomalies

▶ Large casing (up to 21”) inspection with extension kit

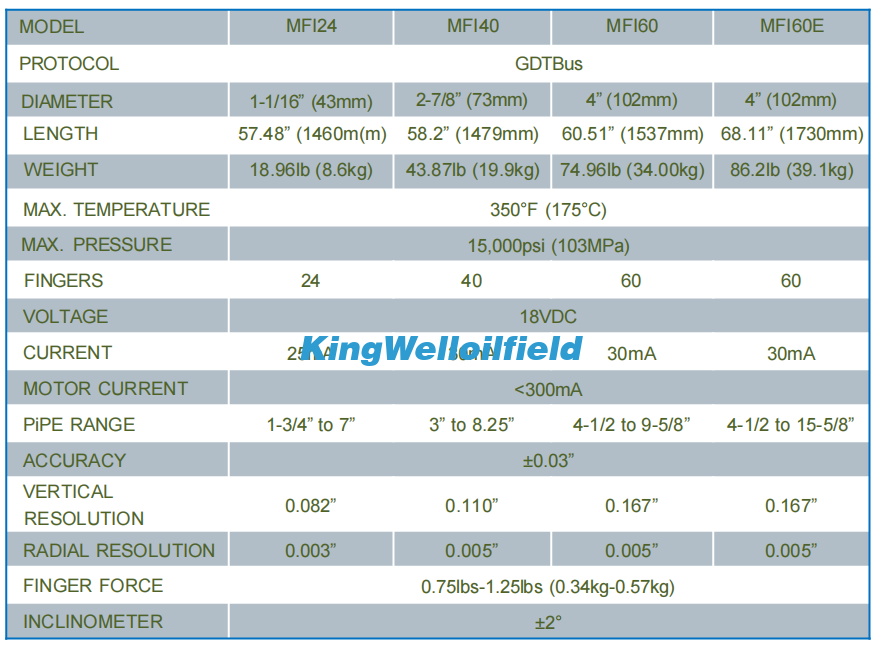

Specifications
