Cased Hole Logging Equipment
1

Memory Logging System MLS

Memory Logging System MLS
Download Pdf

Product Parameters

Product Parameters

memory

Description

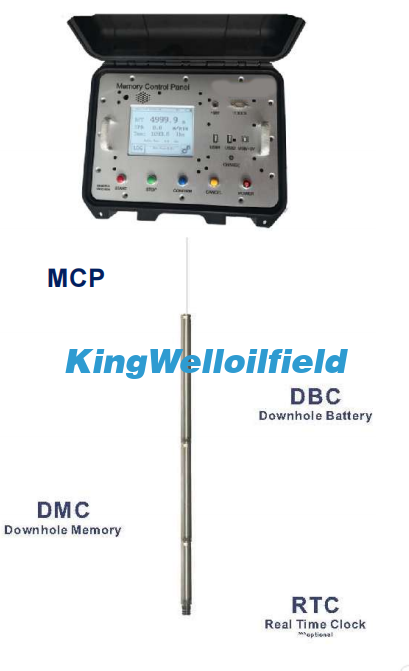

The Memory Logging System (MLS) is used when electric line conveyed real time logging is not an available option, for example when using Slickline or Coiled Tubing.

A standard memory job consists of the following procedure:

- DMC is synced and programmed through the MCP

- MCP is connected to depth control device and records time versus depth

- Tools are lowered into hole and pre-set procedure is executed on the MCP to record time versus sonde samples

- Once back at surface, Depth and DMC data are merged in software to create a log

Conveyance

▶ Slickline

▶ Coil Tubing

▶ Below non-GDT Wireline Tools

▶ Extended reach tractor jobs

▶ Drill Pipe

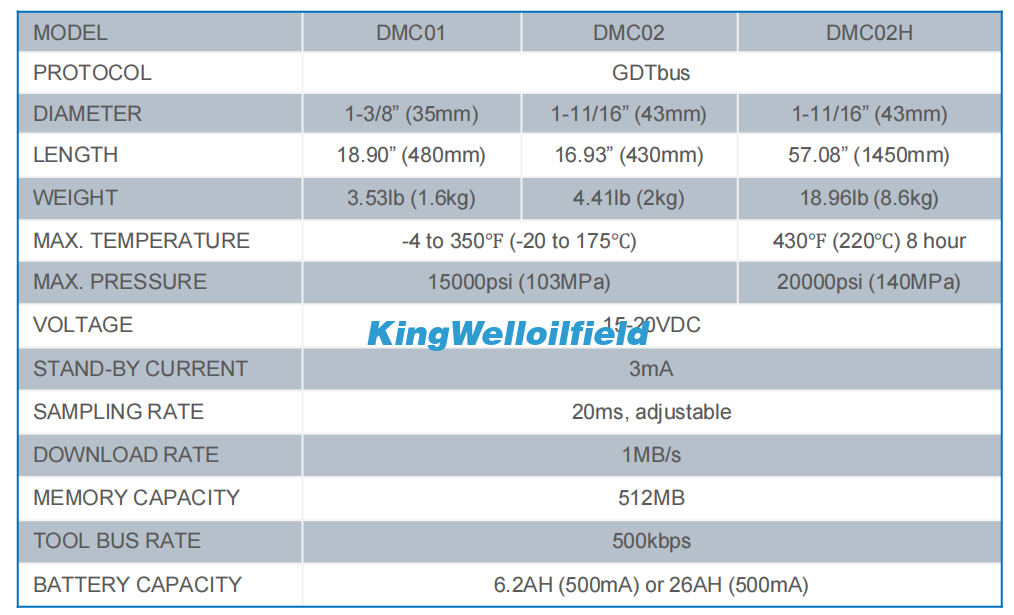

Specifications
