Downhole Fluid Filter

Applications

· Filtration of completion fluids

· Debris extraction

Features and Benefits

· The tool features a one-piece mandrel and has non-rotating

centralizers and components.

0uter filtration cup allows a large circulating flow area around the

tool and maintains casing ID contact while pulling out of hole(PooH).

 The system is self-activating by POoH.No ball or dart is required.

 Internal wire-wrapped screen is protected by a steel skin.

 The integral pressure relief system can be set according to well

conditions,which prevents swabbing if the tool fills with debris.

Tool Description

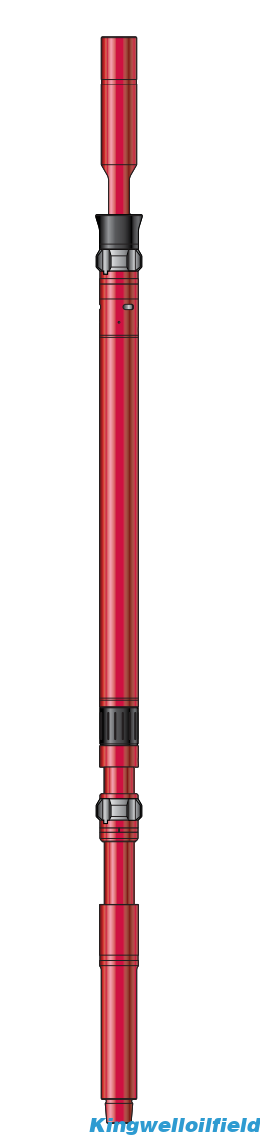

The  downhole fluid filter is a drillpipe-conveyed,POOH-

activated downhole filter that removes debris from the wellbore fluids.

It does not require activation via ball or dart.Its unique expanding and

retracting wiper cup provides positive contact between tool oD and

the casing ID as the tool is P0oH,which enables filtering 100% of the

wellbore fluid through the integral system.

All filtered debris is captured inside the solid debris catchment area and

can be emptied at surface by loosening a single bolt.once emptied and

inspected,the tool can be re-run,if required.
